S centrifugal water pump

S, SH Horizontal centrifugal double suction split case pump

S single-stage double-suction horizontal split case centrifugal pump is a new energy-saving horizontal centrifugal pump.

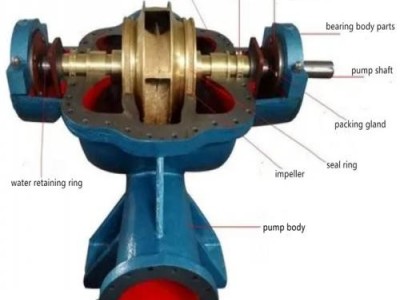

It is mainly composed of pump body, pump cover, shaft, impeller, seal ring, shaft sleeve, bearing etc.

parts.

Its suction inlet and outlet are below the pump shaft.

During maintenance, as long as the pump cover is lifted, all parts can be removed for maintenance.

Convenient maintenance, no need to disassemble inlet and outlet pipelines and motors, high efficiency and energy saving, wide application range.

Pumped liquids

S double suction split case horizontal centrifugal pump is used to convey clean water or other liquids with physicochemical properties similar to water.

When changing the structure and material of the pump according to the user's demand, it can be used for conveying muddy water or various corrosive liquids.

Its performance conforms to basic parameters according to JB/1050-93 single suction double suction clean water centrifugal Pump.

Application

Suitable for factory, mine, city water supply, power station, tap water, farmland irrigation and various water conservancy projects.

Factories, mines, urban water supply, power stations, irrigation and drainage of farmland and various water conservancy projects with big discharging capacity.

Model meaning:

300 S 90 A

300 -- Suction diameter (mm)

S - single stage double suction centrifugal pump

90 -- Design head (m)

A - The impeller is cut for the first time Technical parameters

Flow rate: 80-15000 m3 / h

Head: 19-100 - m

Speed: 1450-2900 r/min

Inlet and outlet diameter: 25-500 Φ Φ

Liquid Temperature range: ≤0~+80℃

Working pressure: ≤ 1.6mpa
